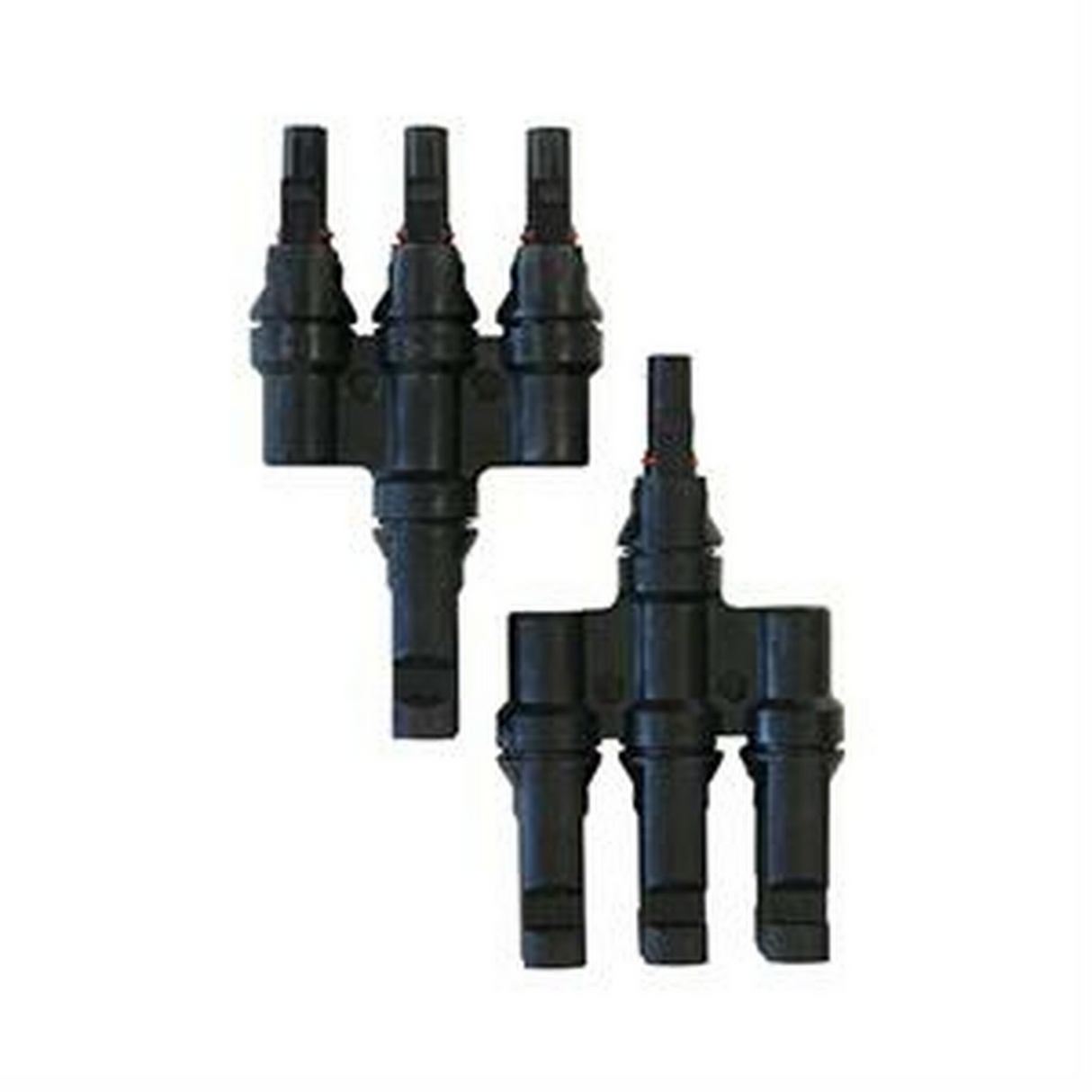

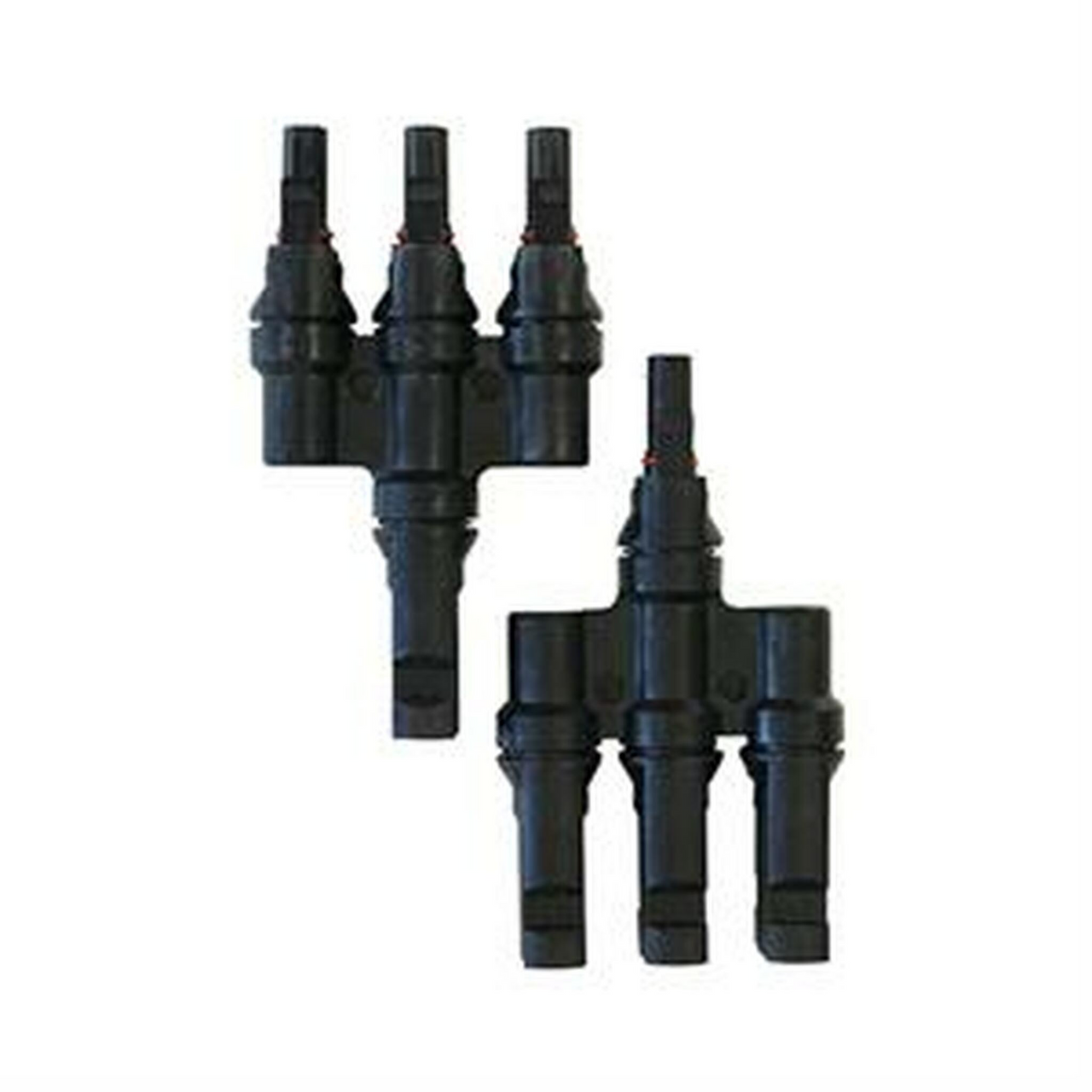

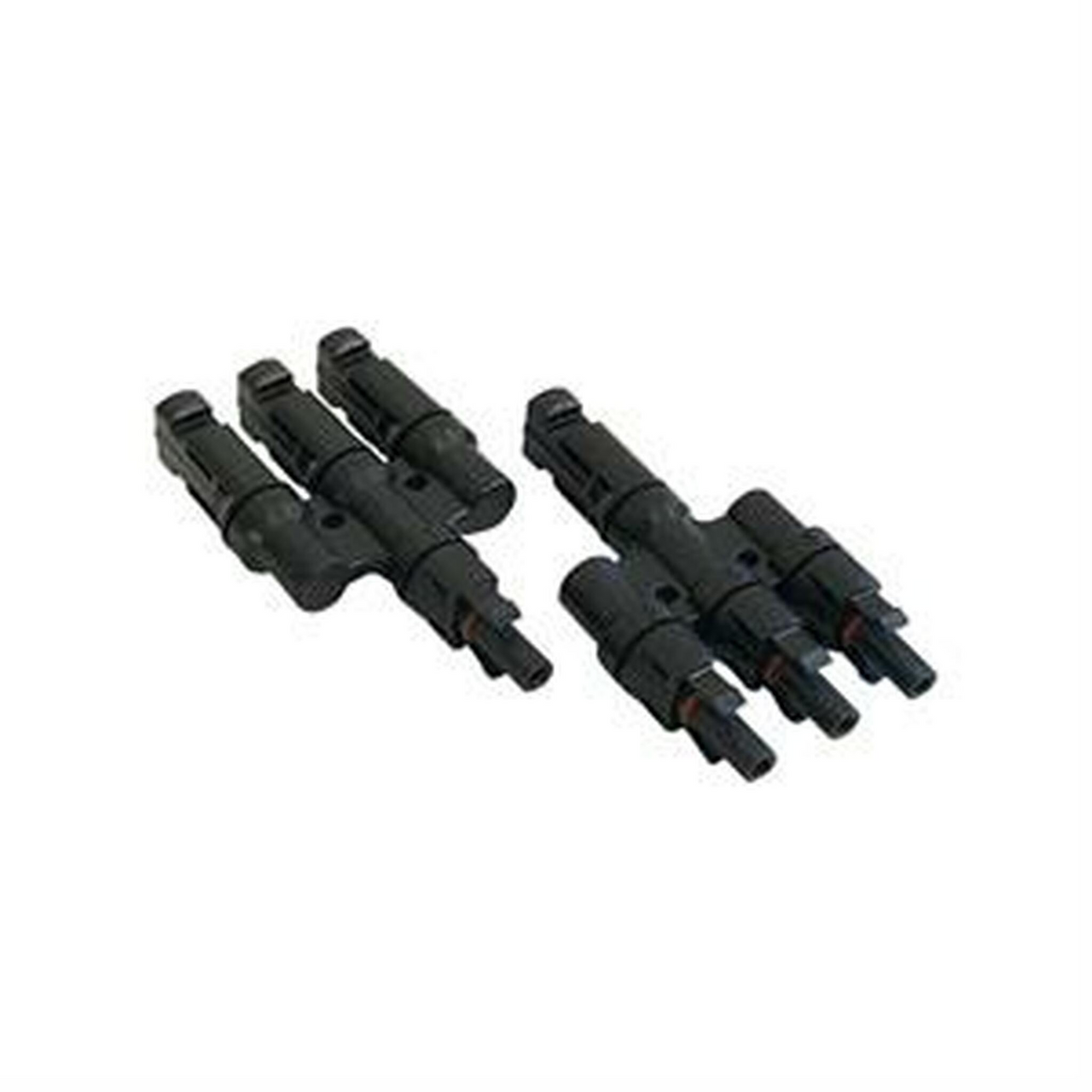

3 to 1 Solar Branch Connectors MMMF+FFFM Pair
3 to 1 Solar Branch Connectors MMMF+FFFM Pair ...ĆØ stato ordinato al fornitore e verrĆ spedito non appena sarĆ di nuovo disponibile.
Description
The Limited Branch Connector is a perfect solution for connecting three panels in parallel. These connectors have high aging resistance and UV endurance; making them weather-proof and able to withstand harsh environments. A rivet and lock is used to connect the cable and no extra tools are required for assembly or disassembly of plugs.
If you have any questions regarding this product, please submit a caseļ¼
Key Features
- Rated Current: 30A
- Insertion Force: < 50N
- Maximum working voltage: DC1000V
Package Includes
Ā|
Renogy 3 to 1 Solar Branch Connectors MMF+FFM Pair
1 x Ā |
| Renogy 3 to 1 Solar Branch ConnectorsĀ (Pair) | Ā |
|---|---|
| Maximum working voltage: DC1000V | Rated Current : 30A |
| Flame class: UL94-V0 | Pollution degree: 2 |
| Contact resistance: ā¤5mmĪ© | Shell Protection degree: IP65 |
| Ambient temperature rangeĀ£Āŗ-40Ā”Ā«+85Ā”Ʀ | Safety Level: class Ā”Ā¬ |
| Insertion force: ā¤50N | Withdrawal force: ā„50N |
Warranty Information
| Panels |
25-year transferable power output warranty: 5 year/95% efficiency rate; 10 year/90% efficiency rate;Ā 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
