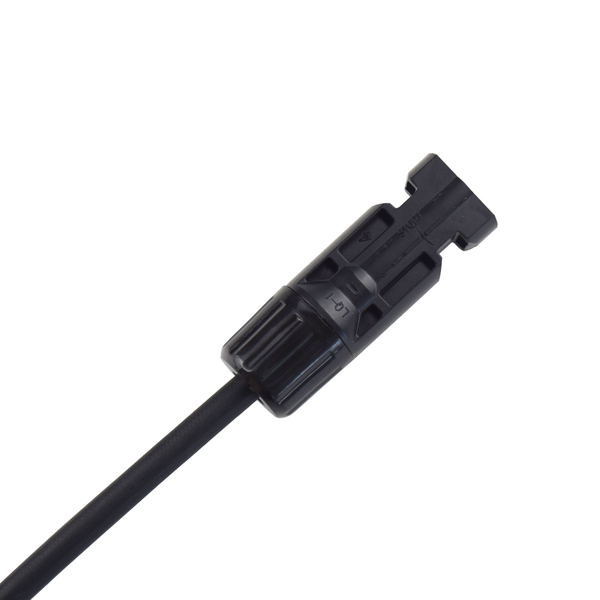

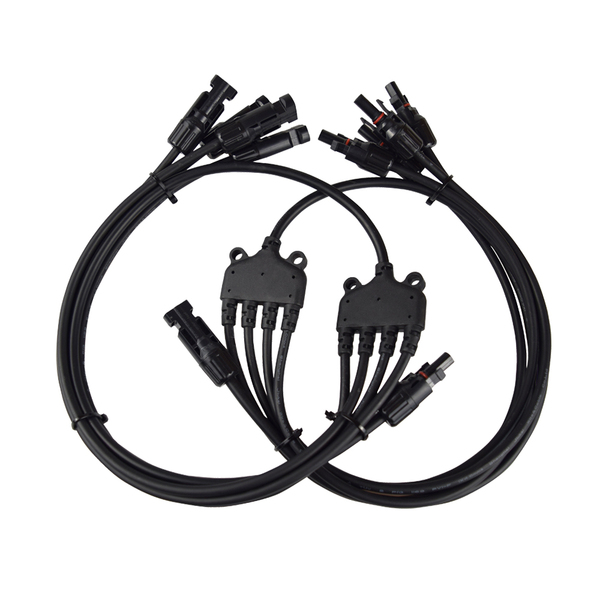

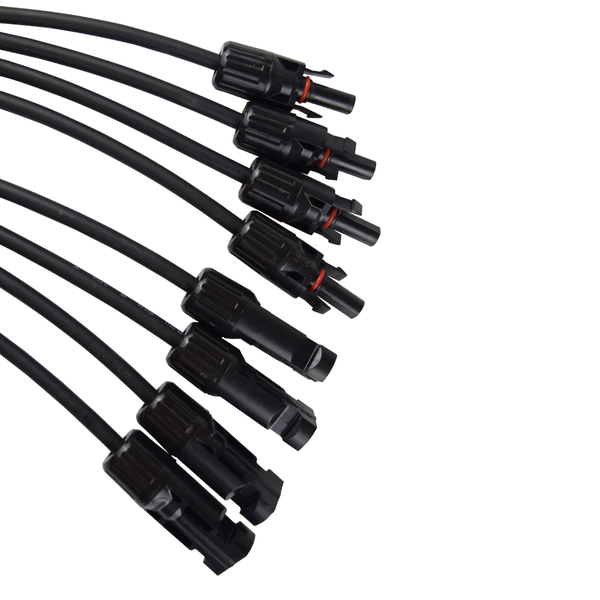

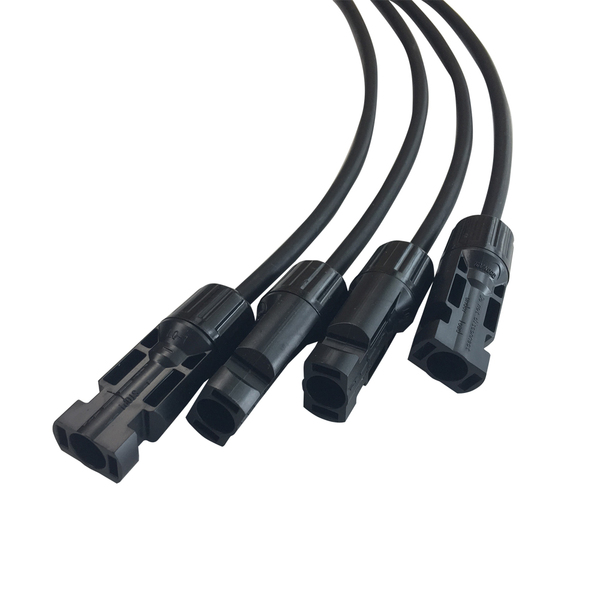

4 to 1 Solar Y Branch Connectors MFFFF + FMMMM Pair
SKU:
RNG-CNCT-MBC-EU
35,99ā¬
45,99ā¬
Prezzo unitario
/
Non disponibile
22% di sconto
+
+
Rays
dopo l'acquisto.
Log In
Learn More
Imposte incluse
4 to 1 Solar Y Branch Connectors MFFFF + FMMMM Pair ...ĆØ stato ordinato al fornitore e verrĆ spedito non appena sarĆ di nuovo disponibile.
Metodi di Pagamento
Metodi di Spedizione
Tempi di consegna: da 5 a 7 giorni lavorativi. (Esclusi i trasporti in carico parziale.) Le spese di spedizione sono calcolate in base al peso.
Ā
Description
Make wiring parallel solar panels a breeze with these extended Solar Y Branch connectors. Primarily suitable for 400W kits; these connectors allow you to install panels in portrait or landscape orientations without the messy wires in your way. Each package comes in pairs.
If you have any questions regarding this product, please submit a caseļ¼
Key Features
- Hard plastic.
- Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.

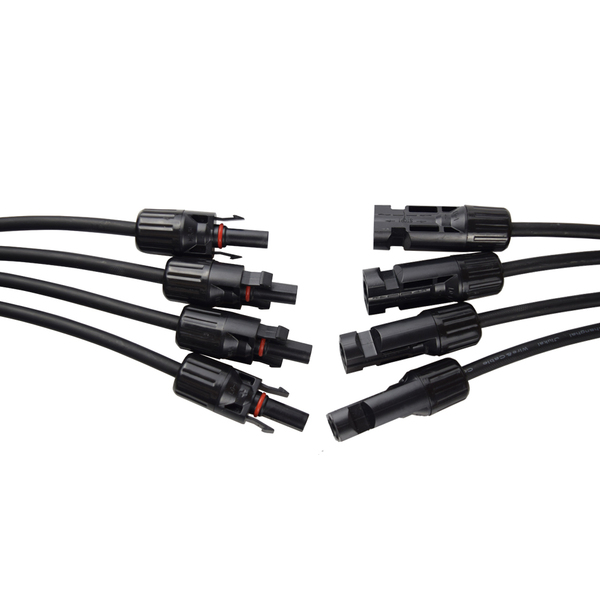

- Including one male to four female and one female to four male.
Ā
Package Include
Ā|
Renogy Solar Y Branch Connectors MFFFF + FMMMM Pair
1 x |
Ā
| Specifications | Ā |
|---|---|

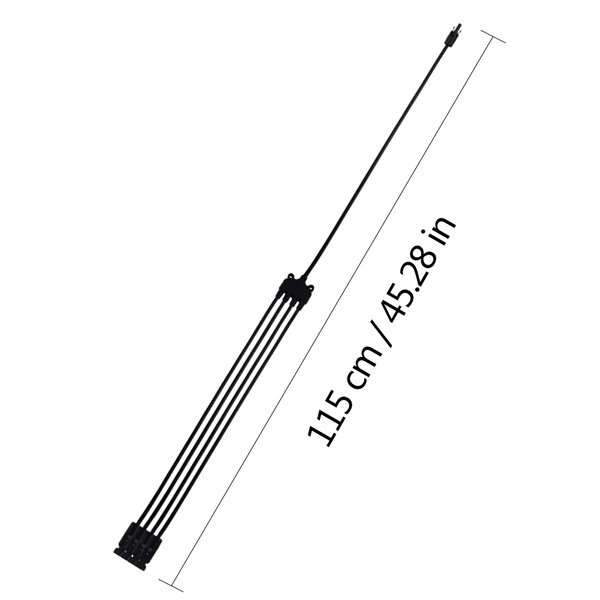

| Withstanding voltage: 1000V DC(TUV); 600V(UL) | Length: Overall: 3.5ft; Branch: 1.5ft |
| Rated Current: 30A | Temperature: -40Ā°F to +194Ā°F |

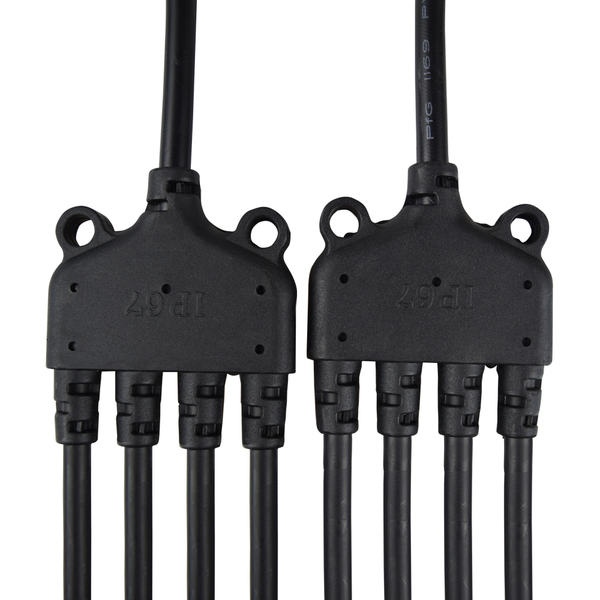

| Protection Degree: IP67 | Wiring Size: Main: 10AWG; Branch: 12AWG |
| Insulation Material: PC/PA | Contact Material: Copper; silver plated |
| Test Voltage: 6500V (50HZ; 5Min) | Ā |
Ā
Warranty Information
| Cables and Wiring |
1 year material and workmanship warranty |
